Big Screen Digital Home Thermostat Temperature Controller Battery Operated

Name: Big Screen Digital Home Thermostat Temperature Controller Battery Operated
Brand: OEM/ODM
Price: 1 USD

China Big Screen Digital Home Thermostat Temperature Controller Battery Operated wholesale

Brand Name : OEM/ODM

Model Number : STN805

Certification : CE/UL

Place of Origin : CHINA

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, /Paypal

Supply Ability : 100000 pieces/month

Delivery Time : 30-60 days

Packaging Details : Carton box

Product name : Air Conditioner Wall Thermostat

Programmability : 5/1/1 Programmable

System Switch : HEAT/OFF/COOL

Fan Switch : AUTO/ON

Application : Hotel,Household,Indoor,Room

Voltage : 24V or battery Power Supply

Weight : 236 g

Temperature range : 44℉ to 90℉

Backlight : Blue,white or green

Certificate : CE/UL

Material : PC+ABS

Contact Now

Digital Home 7 Day Programmable Thermostat With Large LCD Screen For Battery Operated

ISO certifications .pdf

Product Description :

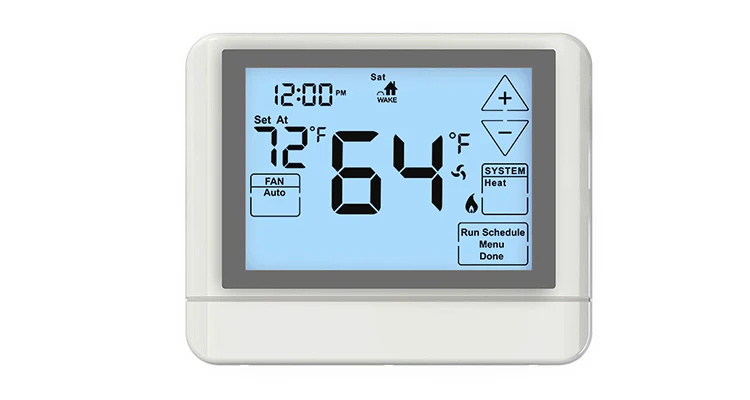

STN805 is Touch screen electronic thermostat, A simple, easy to use 1-week(5-1-1 Day) programmable thermostat. You set

it up to adjust the temperature when you are away or asleep-times when you don't necessarily need to heat or cool

your home to optimum comfort-and your HVAC equipment runs less. Plus, your heating or cooling comes back to

the comfort level you desire before you come home or wake up, and have 1-year warranty.

Features:

Display temperature range ...................................32℉ to 99℉ (1℃ to 40℃)

Setpoint Range.....................................................44℉ to 90℉ (7℃ to 32℃)

Stages...................................................................1 Heat / 1 Cool

Programmability.....................................................5(Mo~Fr)/1(Sa)/1(Su) Programmable

Program................................................................4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”

Load rating............................................................1.0Amp per terminal, 1.5Amp maximum all terminals combined

Display accuracy...................................................±1℉(under 68℉)

Power source........................................................24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)

2*AAA 1.5V Alkaline batteries power

Fan Switch............................................................AUTO/ON

System Switch......................................................HEAT/OFF/COOL

Differential.............................................................0.2 to 2.0℉

Low battery indicator.............................................Under 2.7V (without 24V power supply)

Backlight...............................................................Blue/Orange/White light on for 15 seconds

Package Including:

STN805 thermostat - 1pcs

Color box - 1pcs

Screws and anchor - 2pcs

User manual - 1pcs

Whether to include a battery - Not

Do you need a battery? - Not

Big Screen Digital Home Thermostat Temperature Controller Battery Operated

Specifications:

Stages:	1 Heat / 1 Cool
Switchable Voltage:	24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power
Low battery indicator:	Under 2.7 V
Programmability:	5/1/1 Programmable
Program:	4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”
Temperature Range (°C):	32℉ to 99℉ (1℃ to 40℃)
Control Temp.Range (°C):	44℉ to 90℉ (7℃ to 32℃)
Display accuracy:	±1℉(under 68℉)
Load rating:	1.0Amp per terminal, 1.5Amp maximum all terminals combined
Backlight:	Customied
Fan Switch:	AUTO/ON
System Switch:	HEAT/OFF/COOL
Differential:	0.2 to 2.0℉
Dimensions of thermostat:	120 x 98 x 28 MM

Company Information

Big Screen Digital Home Thermostat Temperature Controller Battery Operated

FAQ

About OEM
Except our own brand “OCSTAT”, we can also supply the OEM service to our customers.To meet your need,we can print your Logo or design on thermostat.For big quantity order, OEM service ,User Manual, Inner Packing Box are all Free.

About Samples
1. For our own brand "OCSTAT".We’ll deliver the goods in 2 days after we confirm the payment, and normally 4 to 7 days will arrive at your place.
2. For the samples of your own Logo or design/ OEM
For big quantity OEM order, we will provide you samples according to your requirements. After you confirm samples, we will start mass production.

About MOQ
1. For Thermostats, our MOQ is 500pcs.

2. For Actuators, our MOQ is 100pcs. Because 100pcs actuators are packed into one carton.If you would like a trail order, and quantity is less than MOQ, you can contact with us, we will arrange service.
About Lead Time
For normal order:
If quantity is less than 1000pcs, the lead time is about 30 working days after your payment;If quantity is more than 1000pcs, the lead time is about 30-50 working days after your payment.
For OEM order:
The lead time is about 15-45 working days after your payment.
About Gurantee
1. We offer the warranty of 24 months since the sales day.
2. Durrant the warraty, if belong to the quality issue, we will fix or replace them for you by free after test them. If it is not the problem of quality or beyond the warranty time, we will charge for the after-sale service.
