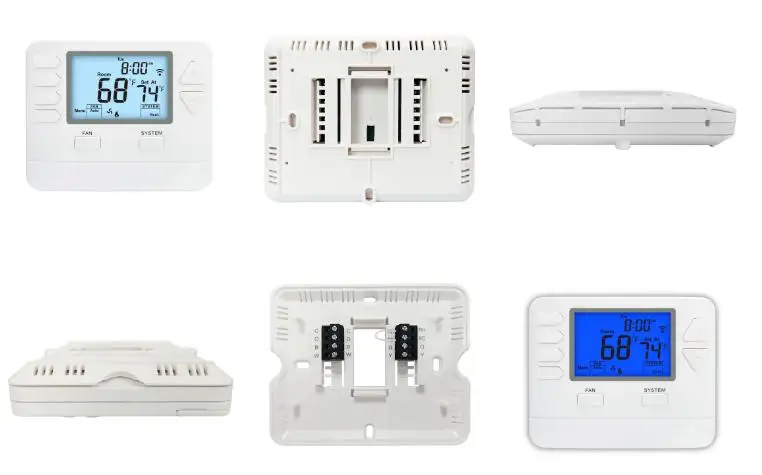

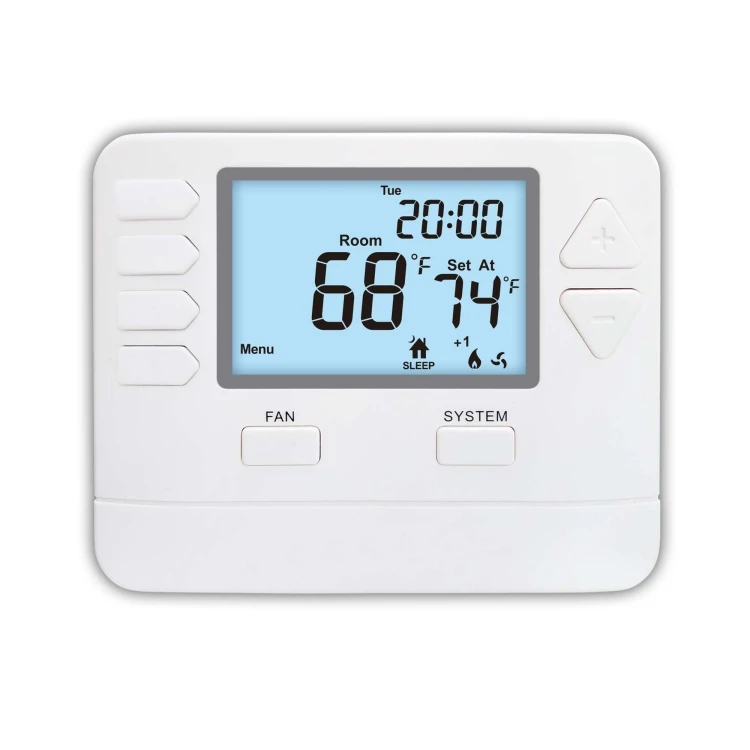

Product Description
Specifications: | Stages: | 1 Heat / 1 Cool |
| Switchable Voltage: | 24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power |
| Low battery indicator: | Under 2.7 V (without 24V power supply) |
| Programmability: | 5(Mo~Fr)/1(Sa)/1(Su) Programmable |
| Program: | 4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP” |
| Temperature Range (°C): | 32℉ to 99℉ (1℃ to 40℃) |
| Control Temp.Range (°C): | 44℉ to 90℉ (7℃ to 32℃) |
| Display accuracy: | ±1℉(under 68℉) |
| Load rating: | 1.0Amp per terminal, 1.5Amp maximum all terminals combined |
| Backlight: | Blue/Green/white |
| Fan Switch: | AUTO/ON |
| System Switch: | HEAT/OFF/COOL |
| Differential: | 0.2 to 2.0℉ |
| Dimensions of thermostat: | 120 x 98 x 28 MM |
Set Program Schedule
To customize your program schedule, follow these steps:
1. Select HEAT or COOL from the system switch.
Note: You have to program heat and cool each separately.
2. Press MENU
3. Press SET SCHED.
Note: Monday-Friday is displayed and the WAKE icon is shown. You are now programming the wake time period for the weekday setting.
4. Time is flashing. Use the + or - key to make your time selection for the weekday WAKE time period (step: 10 minutes).
5. Press NEXT STEP
6. The setpoint temperature is flashing. Use the + or - key to make your setpoint selection for the weekday wake period (step: 1℉).
7. Press NEXT STEP
8. Repeat steps 4 through 7 for weekday LEAVE, RETURN and SLEEP time period.
9. Repeat steps 4 through 7 for Saturday WAKE, LEAVE,RETURN and SLEEP time period.
10. Repeat steps 4 through 7 for Sunday WAKE, LEAVE,RETURN and SLEEP time period.
11. Press DONE when completed or quit after 15 seconds automatically.
Packaging & Shipping
About Payment
T/T is the common payment way.
If you need, Paypal, Western Union, and MoneyGram is also available. If you have payment method requirement, please contact with Wendy Lynn, she will serve you.
About Shippment
For samples/trail order less than 100pcs, we suggest you choose EXPRESS delivery. DHL, FEDEX, TNT, UPS, EMS, ePacket are available.
For large order, we suggest you choose shippment by sea, or by air.
If you have shippment requirements, we can arrange delivery according to your need.
FAQ
About OEM
Except our own brand “OCSTAT”, we can also supply the OEM service to our customers.To meet your need,we can print your Logo or design on thermostat.For big quantity order, OEM service ,User Manual, Inner Packing Box are all Free
About Samples
1. For our own brand "OCSTAT".We’ll deliver the goods in 2 days after we confirm the payment, and normally 4 to 7 days will arrive at your place.
2. For the samples of your own Logo or design/ OEM
For big quantity OEM order, we will provide you samples according to your requirements. After you confirm samples, we will start mass production.
About MOQ
1. For Thermostats, our MOQ is 500pcs.
2. For Actuators, our MOQ is 100pcs. Because 100pcs actuators are packed into one carton.If you would like a trail order, and quantity is less than MOQ, you can contact with us, we will arrange service.
About Lead Time
For normal order:
If quantity is less than 1000pcs, the lead time is about 30 working days after your payment;If quantity is more than 1000pcs, the lead time is about 30-50 working days after your payment.
For OEM order:
The lead time is about 15-45 working days after your payment.
